Sometimes it can be convenient to hand out "tags" to the customer for identification when passing through. Instead of BankID and other digital identification methods.
Please note that the tag reader works at the same time as BankID and other identification methods. This is a complement.

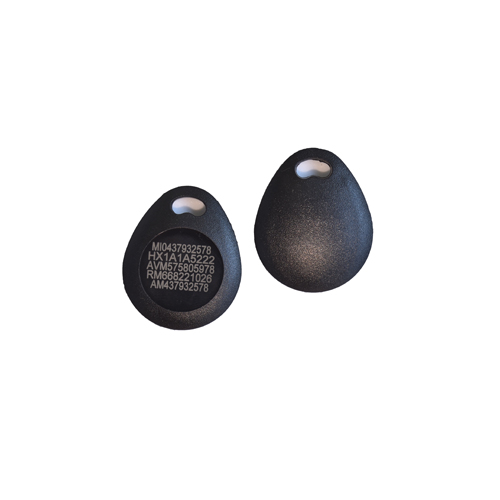

This is what a tag might look like. They come in slightly different designs and colors.

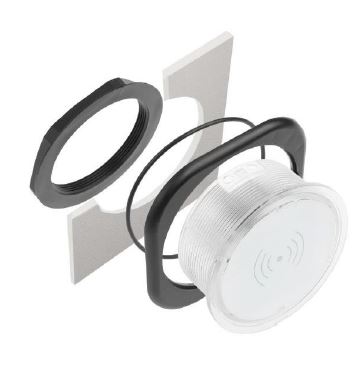

The reader itself looks like this.
Activate
Read our article about how tag activation works here
The reader is designed for installation. This means that a round hole is required to mount it in order to be able to screw it in from the inside with a nut. On the reader, on the inside, a USB cable is connected to a control box. The control box is in turn connected to a wall socket and the internet via an Ethernet cable.
The unit is mounted in a hole that is 63.2 mm large.
The unit's dimensions are: 82 mm x 82 mm x 34.2 mm
What is included:
* Tag reader for installation.
* IP-65.
* -25 - 80 °C operating temperature.
* 2 meter USB cable
* Control box for internet connection
* Transformer for the control box for connection to a wall socket
* 100 tags. These are activated upon delivery.
Control box

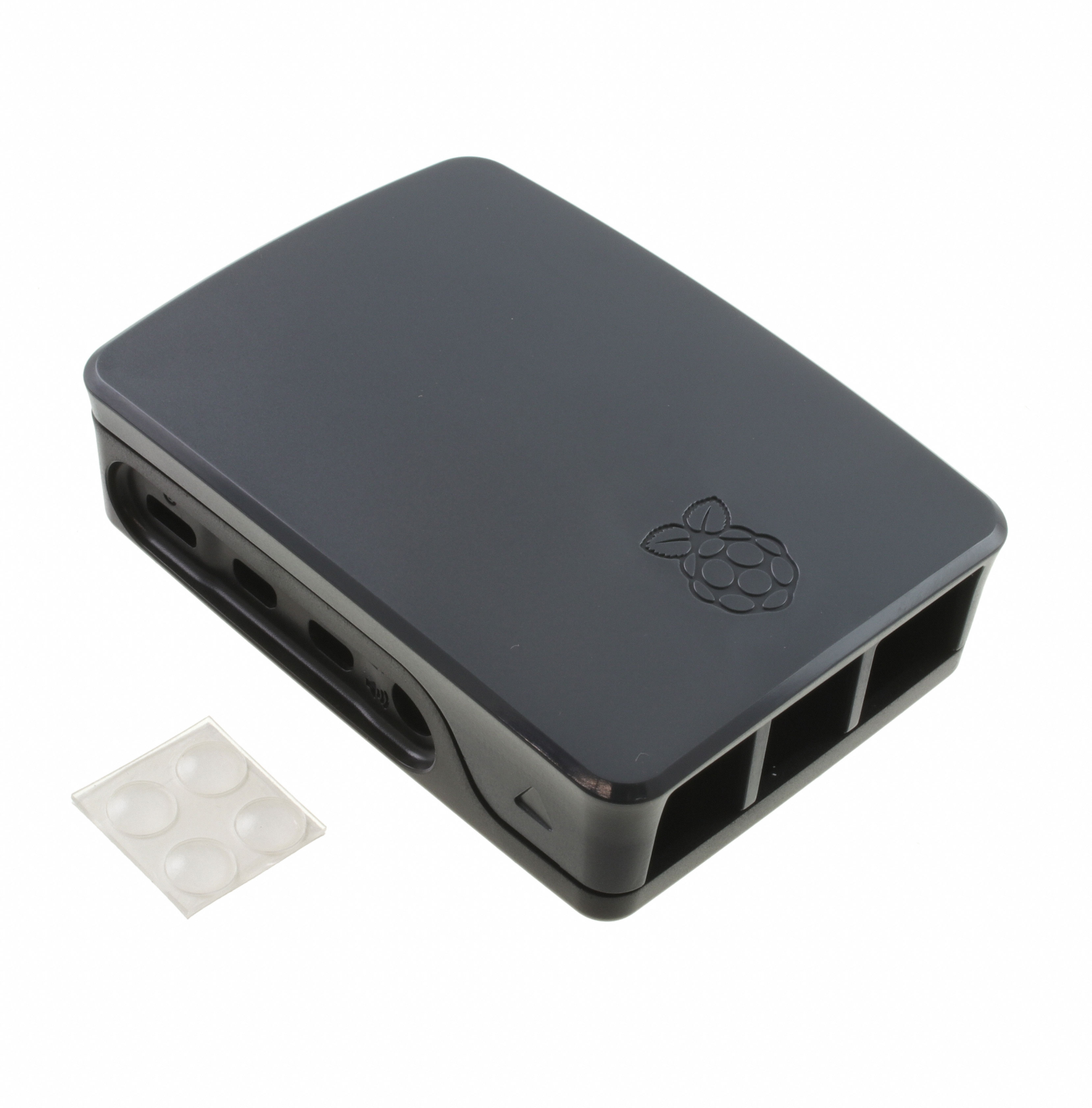

We do not have a standard box, they can look different, but this is what the control box looks like. There is a connection for the transformer USB-C, the RFID reader to USB and a network cable.
Mounting Tips

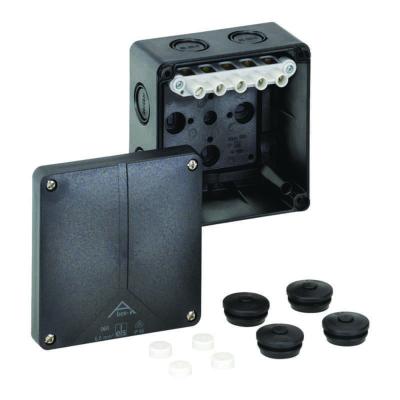

We will send you a junction box with a pre-drilled hole like the one in the picture below. Approx. 80mm wide. 55mm deep. Optional to use but recommended.

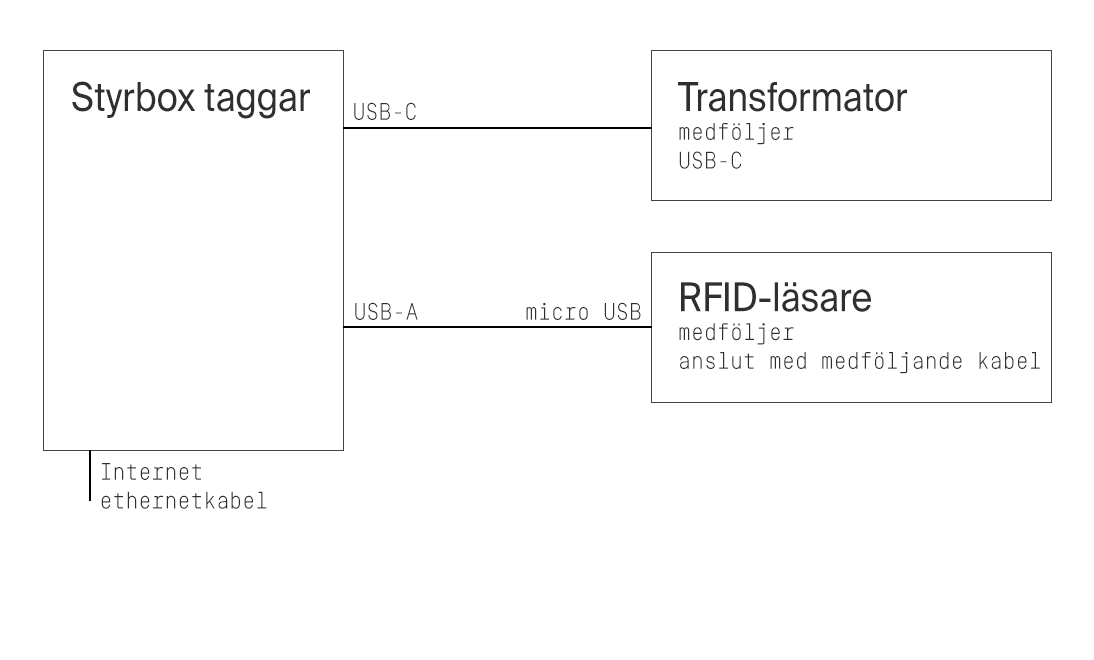

Wiring diagram
